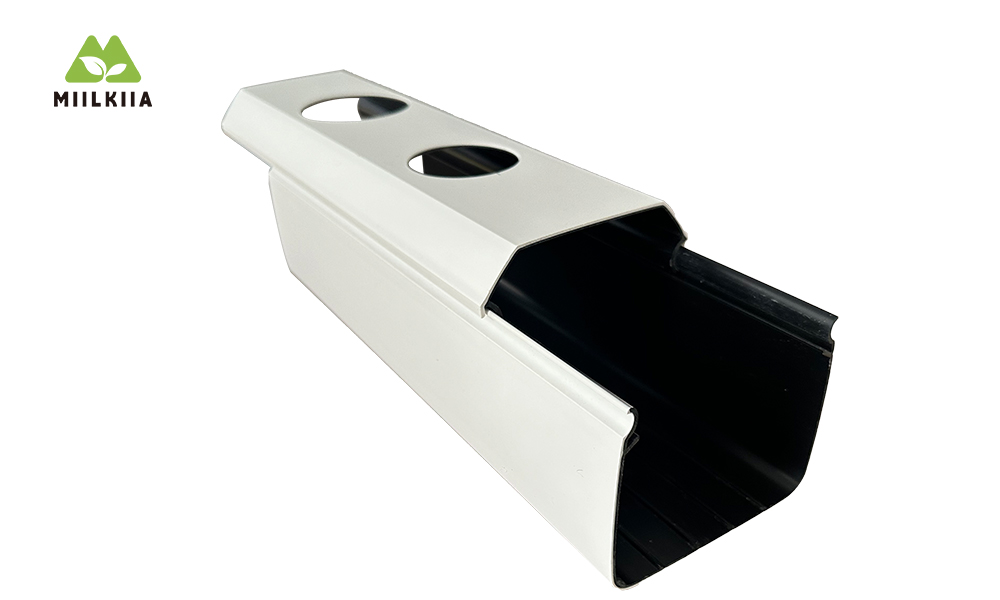

Revolutionary Black and White Hydroponic Channels
new thermal insulation quilts
01
Leave Your Message

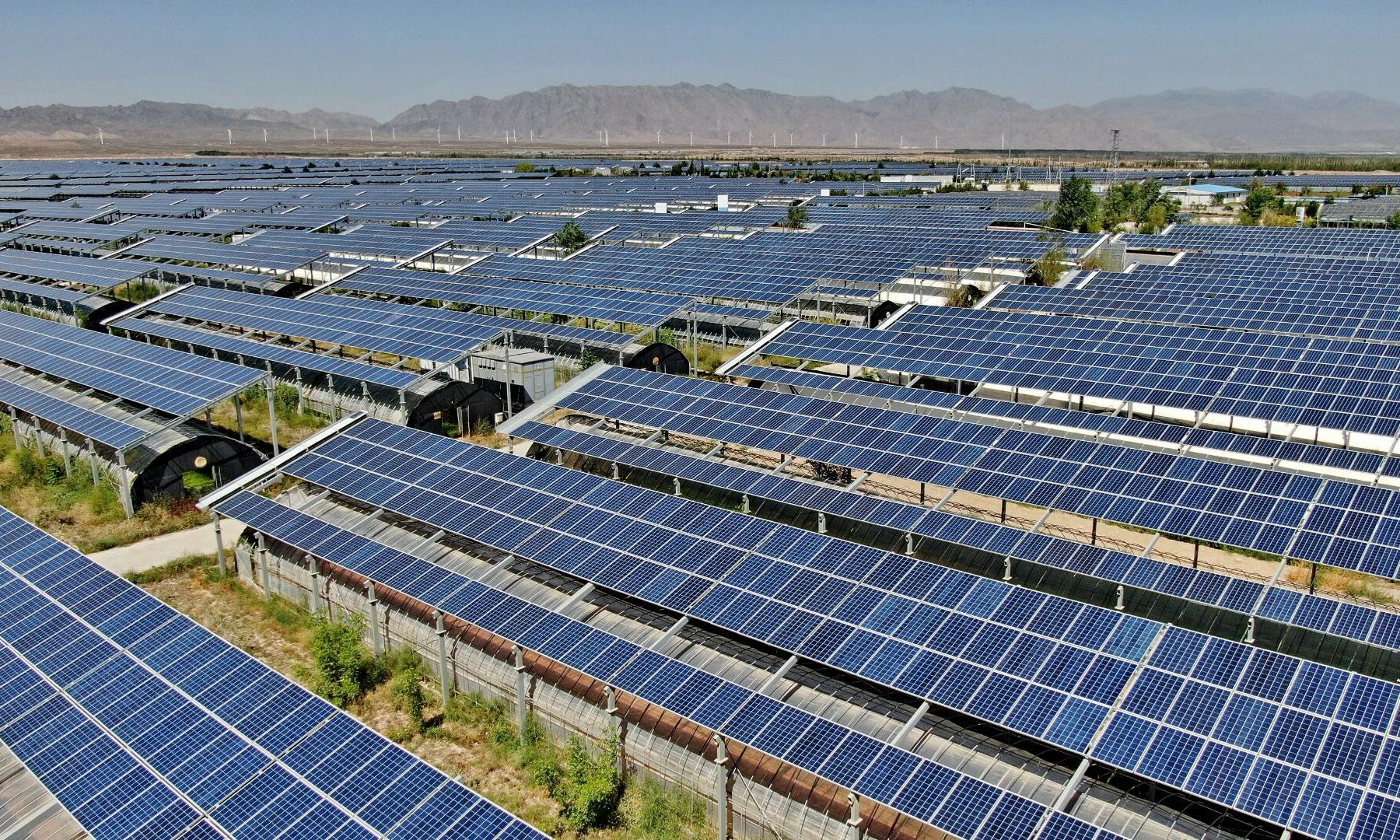

Photovoltaic Systems

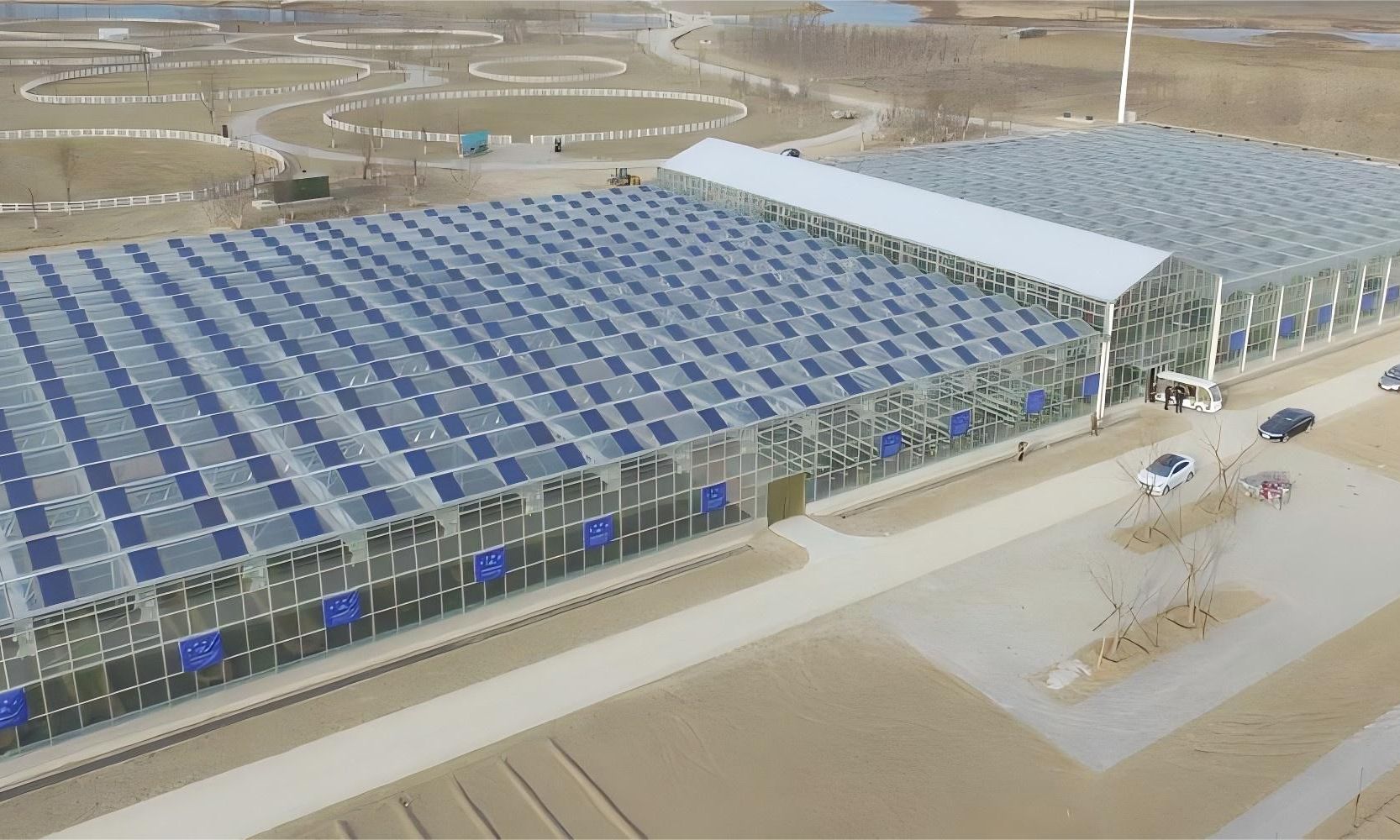

Photovoltaic (PV) systems offer a sustainable energy solution for greenhouses, enhancing efficiency and reducing reliance on external power sources. By converting sunlight into electricity, PV systems support greenhouse operations and contribute to sustainable agriculture.
Core Working Principles
PV systems operate by converting sunlight into electrical energy:
● Solar Energy Capture:

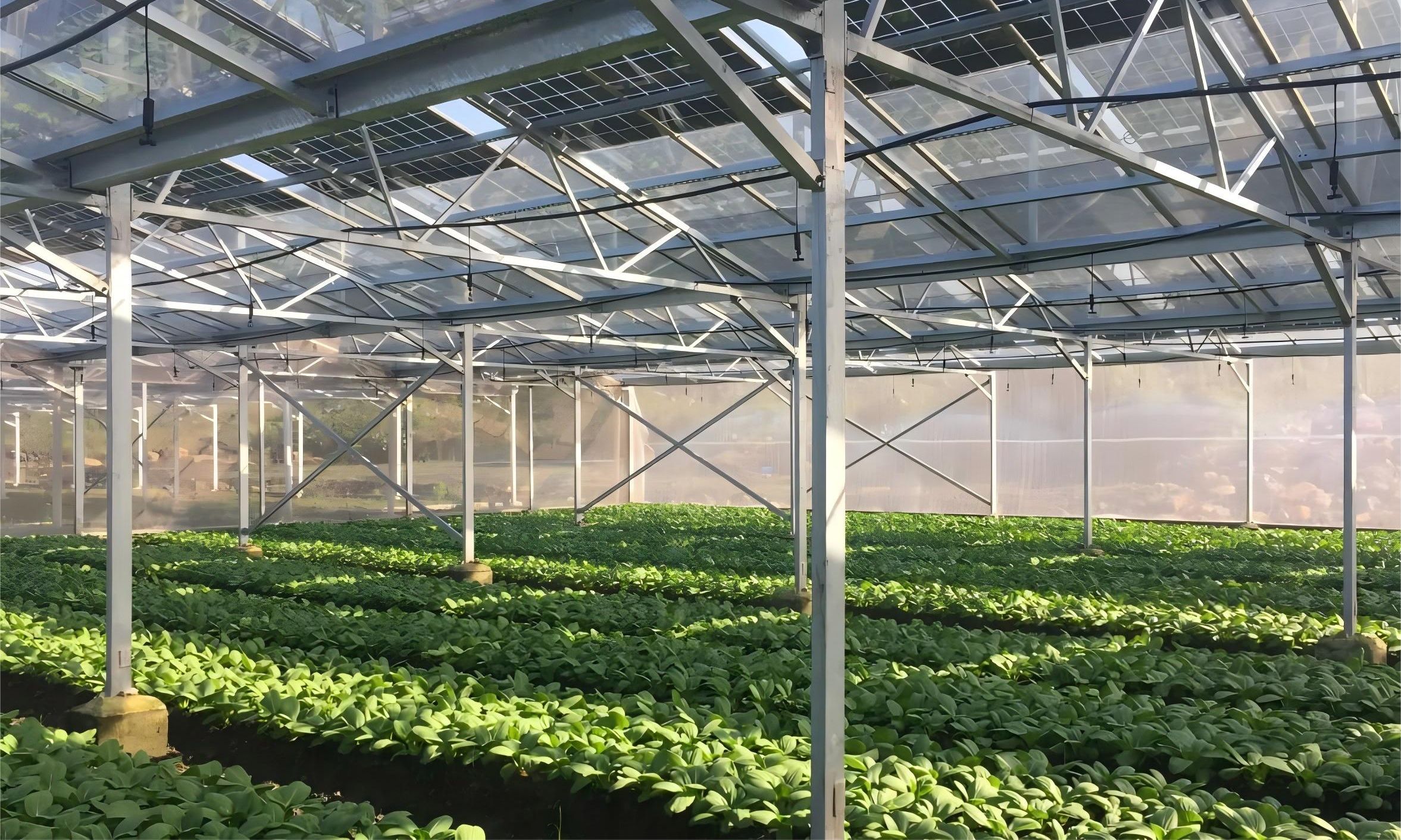

Solar panels on greenhouse roofs or walls capture sunlight and convert it into direct current (DC) electricity.
● Energy Conversion:
DC electricity is converted into alternating current (AC) by an inverter for use by greenhouse equipment.
● Power Distribution and Storage:
AC electricity powers greenhouse devices, and excess energy can be stored in batteries or fed back into the grid.
● Monitoring and Control:
Smart systems monitor and adjust greenhouse conditions, optimizing energy use and environmental control.
Applications in Greenhouses

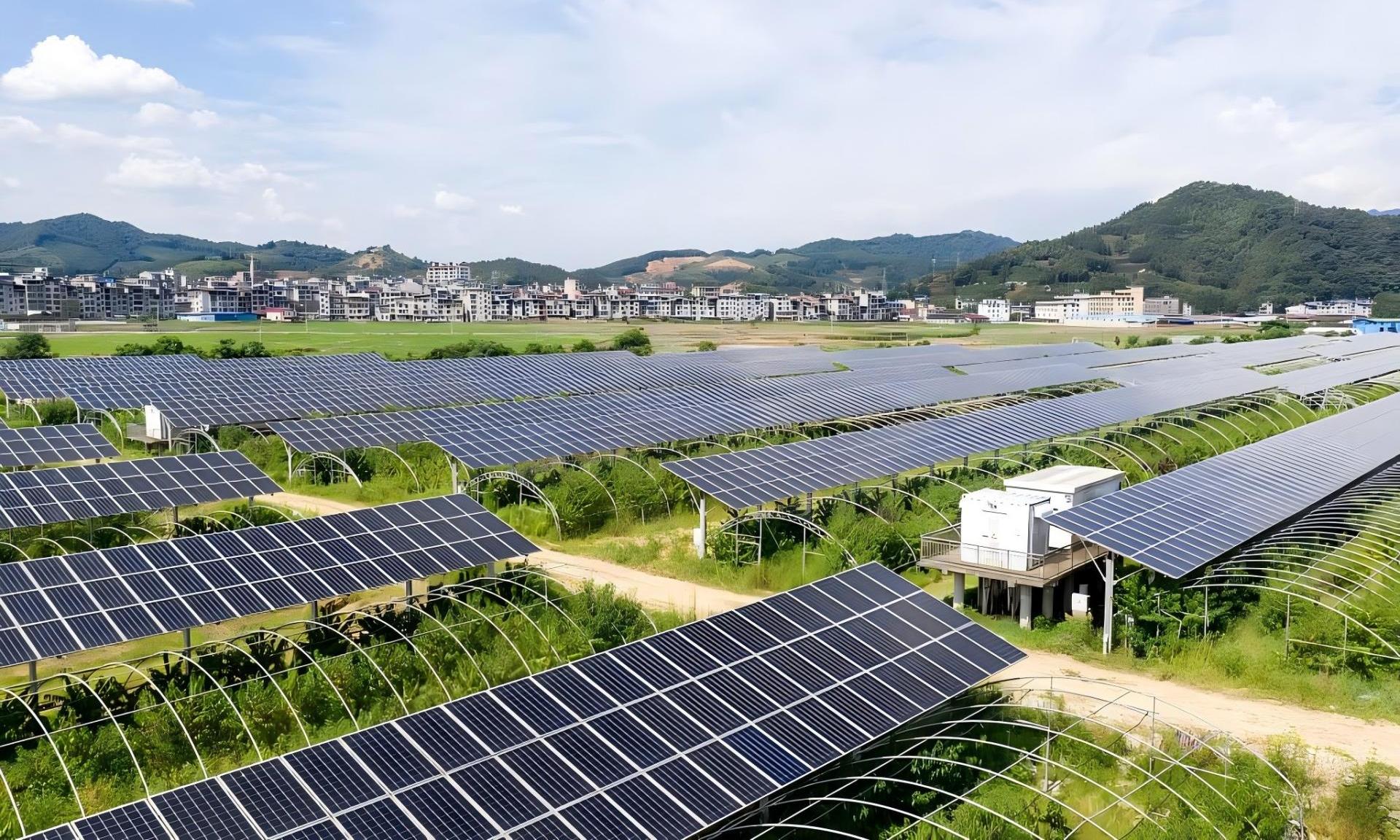

● Dual Functionality:
They enable simultaneous power generation and agricultural production, optimizing land use.
● Energy Self-Sufficiency:
PV systems reduce reliance on external power and lower energy costs while improving the greenhouse environment.
● Versatility:
Besides power generation, PV systems provide protection against harsh weather and can be used to produce fresh water and collect rainwater.
Components of Photovoltaic Systems
● Solar Panels:
Capture solar energy and convert it into DC electricity. Common types include monocrystalline, polycrystalline, and thin-film solar panels.
● Inverter:
Converts DC electricity into AC electricity for use by greenhouse equipment. Common inverters include string inverters and microinverters.
● Battery Storage:
Stores excess electricity to ensure power supply when sunlight is insufficient. Lithium-ion batteries are commonly used.
● Charge Controller:
Regulates voltage and current from the solar panels to the battery, preventing overcharging and extending battery life.

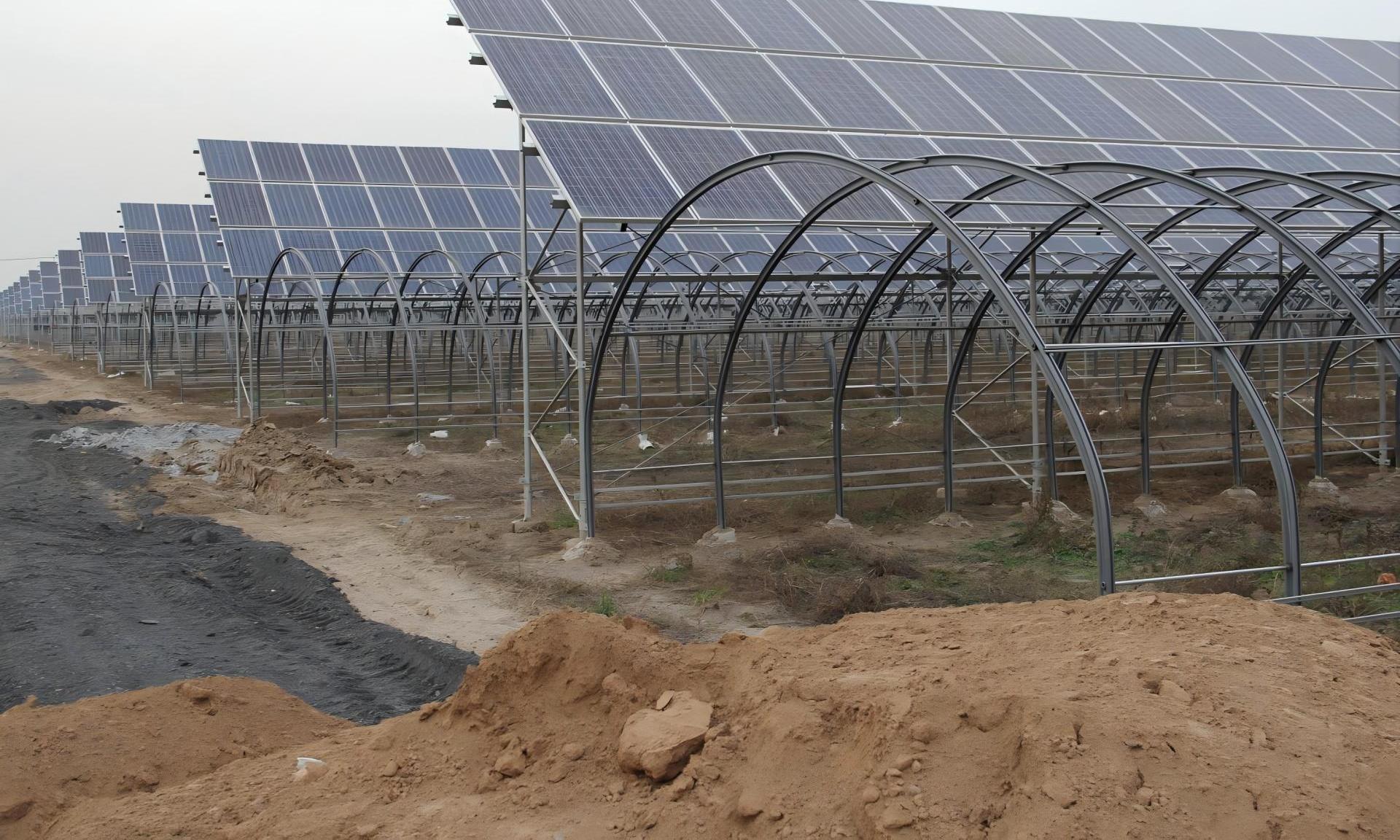

● Mounting System:
Secures the solar panels, ensuring they capture sunlight at the optimal angle.
● Cables and Wiring:
Transmit electricity and ensure system safety.
● Monitoring System:
Continuously monitors the performance of the PV system to ensure optimal operation.
● Safety Equipment:
Includes circuit breakers and fuses to protect the system from electrical faults.
Energy Savings and Production Example
For a 1,000-square-meter greenhouse:
● Solar Irradiance: Assume an average solar irradiance of 4 kWh/m²/day.
● Panel Efficiency: Assume a solar panel efficiency of 20%.
● Usable Area: If 70% of the 1,000-square-meter roof area is used for solar panels, this gives 700 square meters.
Daily Power Generation Calculation:
Daily Power Generation=700m2×4 kWh/m2×0.20 = 560 kWh/day
Annual Power Generation Calculation:
Annual Power Generation = 560 kWh/day × 365 days/year = 204,400 kWh/year
Energy Demand and Savings:
Assuming the annual energy demand of the greenhouse is 150,000 kWh, the PV system can meet approximately 100% of the energy needs, with an additional 54,400 kWh/year available for the grid.
PV systems enhance greenhouse operations by providing a reliable, sustainable power source and optimizing environmental conditions. This system offers new opportunities for modern agriculture, particularly in regions with limited resources or harsh environmental conditions.
